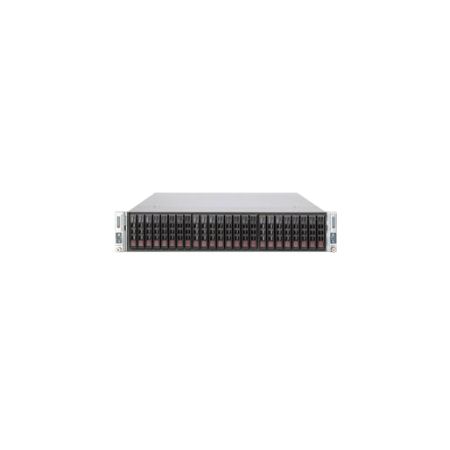

Supermicro SuperServer 2026TT-DLRF Barebone System - 2U Rack-mountable - Intel 5520 Chipset - Socket B LGA-1366 - 2 x Processor Support - Black Item # 244819
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
244819
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The 2026 SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
Product Details
| Item # | 244819 |
| Manufacturer # | 111226 |
| Ethernet Technology | Gigabit Ethernet; Fast Ethernet |
| RAID Levels | 0, 1, 1+0, 5 |
| Processor Supported | Xeon |
| Maximum Power Supply Wattage | 1.40 kW |
| height | 3.5 in |
| Additional Information | System Detail:2 x hot-pluggable systems (nodes) in a 2U form factor; Expansion Slot Detail:PCI Express x16 slots have the bus speed of PCI Express x8 |
| Certifications & Standards | PCI 2.2; ACPI up to 3.0 |
| Total Number of USB Ports | 4 |
| Graphics Controller Manufacturer | Matrox |
| Power Supply Capacity | 2x1400 Watt |
| width | 17.2 in |
| Product Line | SuperServer |
| package contents | SuperServer 2026TT-DLRF Barebone System; 2 x Super X8DTT-HEF+ Motherboard; 1 x 2U Black Chassis; 2 x Mylar air shroud for SC827HD 2U Heat sink version; 2 x BPN-ADP-E16-L Backplane; 1 x 24pcs 2.5" HDD for two node CSE-217HD; 1 x CD For X8 series; 2 x RSC-R2UT-2E8R-O-P Riser Card; 4 x 2U+ PASSIVE CPU HS FOR INTEL 2U TWIN SERVERS; 2 x 1400W 1U GOLD LEVEL PWS W/ PM BUS & WX3"; 24 x Black gen 3 hot swap 2.5" HDD tray |
| depth | 26.7 in |
| Product Name | SuperServer 2026TT-DLRF Barebone System |
| QuickPath Interconnect Supported | Yes |
| Number of PCI Express x16 Slots | 2 |
| Rack Height | 2U |
| manufacturer | Supermicro Computer, Inc |
| 64-bit Processing | Yes |
| Cluster Configuration | 2 - computing node |
| VGA | Yes |
| weight | 85 lb |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 2 |
| Maximum Memory | 192 GB |
| controller type | Serial Attached SCSI (SAS); Serial ATA/300 |
| Number of Total Memory Slots | 12 |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 4 |
| Storage Controller Name | LSISAS2008 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR3-1333/PC3-10600 |
| Number of Internal 2.5" Bays | 12 |
| Number of Power Supplies Installed | 2 |
| Number of Total Expansion Slots | 2 |
| Processor Socket | Socket B LGA-1366 |
| Chipset Model | 5520 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | G200eW |
| form factor | Rack-mountable |
| Memory Technology | DDR3 SDRAM |
| RAM Supported | PC3-6400 - 192 GB - registered - ECC ¦ PC3-8500 - 192 GB - registered - ECC ¦ PC3-10600 - 192 GB - registered - ECC ¦ PC3-6400 - 48 GB - unbuffered ¦ PC3-8500 - 48 GB - unbuffered ¦ PC3-10600 - 48 GB - unbuffered |
| color | black |
| Number of SAS Interfaces | 6 |
| warranty length | 3-year limited |
| model name | 2026TT-DLRF |
| QuickPath Interconnect | 6.40 GT/s |
| Show More ▾ |
